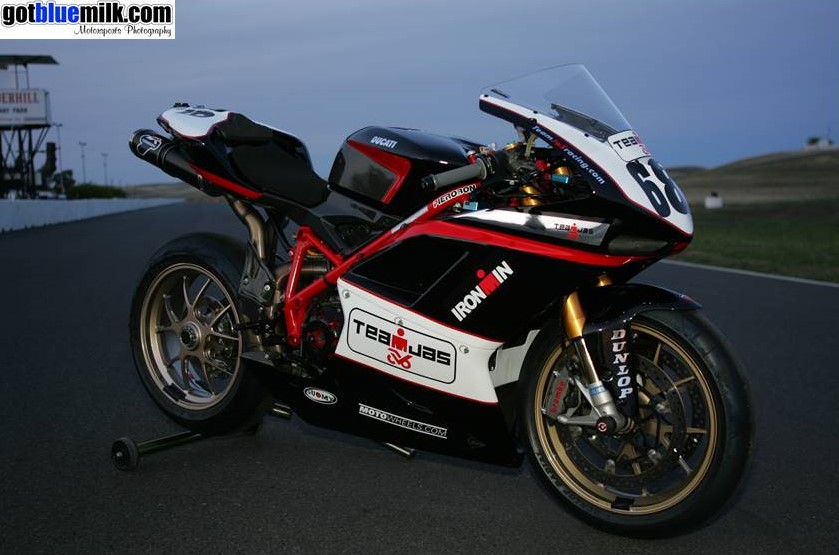

2008 Ducati 1098R #141/450



Frame

  Tubular steel trellis frame in ALS 450

  Aluminum alloy rear subframe

  Kyle USA 30mm offset triple clamps

  Sato Racing adjustable ride height linkage

  Pierobon Frames fairing stay

  SpeedyMoto rearset frame tabs

  SpeedyMoto underbody frame sliders




Engine

  1198.4cc, sand-cast cases, titanium connecting rods & valves, twin injectors, Pistal high-compression racing pistons, blueprinted crank and rods

  Ducati Performance ECU w/ Data Analyzer and Traction Control

  Competitions Systems Traction Control Pod

  Dynojet Powercommander PC3-USB

  XT Racing Ultra-Lap timer w/ infrared sensor

  SpeedCell Technologies 1.3kg 480amp lithium ferrous 9.2Ah battery

  Termignoni 2-1-2, 102dB full exhaust system w/ carbon fiber race mufflers

  SpeedyMoto water pump housing




Drivetrain

  Ducati 1198R gearbox

  Starlane GP quickshifter

  AFAM 520 sprockets

  DID ERV3 520 chain



Clutch

  Surflex race slipper clutch

  Yoyodyne slave cylinder

  SpeedyMoto open clutch cover

  Brembo 16x18mm GP billet radial clutch master cylinder

  Motowheels folding clutch lever



Brakes

  Brembo radially mounted 4-piston, 2-pad M4-34 Monobloc calipers and 330mm rotors

  EBC Extreme Pro HH racing brake pads

  Brembo RCS 19 forged radial brake master cylinder

  Brembo folding brake lever



Wheels

  O.Z. Racing 17" forged, machined aluminum alloy wheels

  Bridgestone slick racing tires



Suspension

  Trail Tricks revalved/resprung hlins 43mm upside-down forks w/ TiN and SBK pistons

  Trail Tricks revalved/resprung hlins TTX36 shock w/ top-out spring and SBK pistons

  Kyle USA track link

  hlins adjustable steering damper



Controls

  Kyle USA adjustable clip-on bars w/ medium Renthal grips

  Yoyodyne custom billet quick-turn throttle

  Attack Performance billet aluminum adjustable rearsets & foot controls



Bodywork

  Catalyst Composites bodywork

  Paint by Harley Barnes

  Fabbri DB windscreen

  Ducati Performance race seat

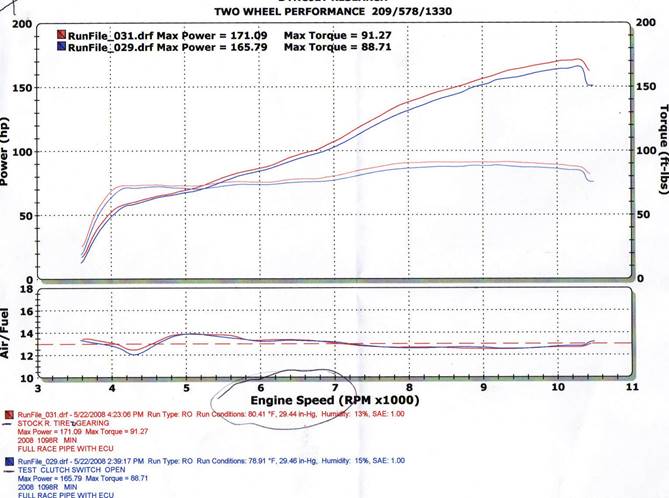

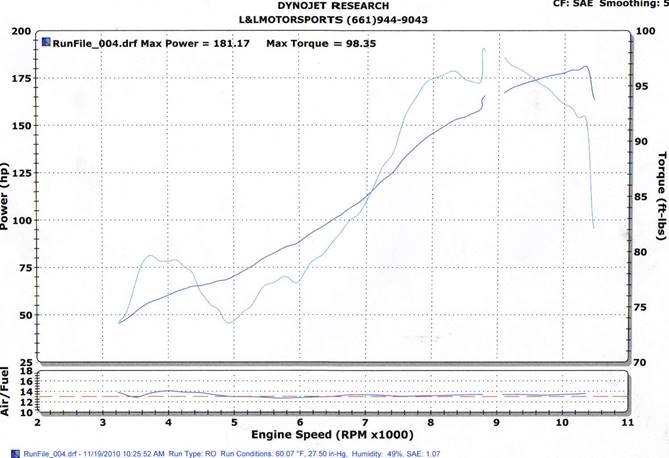

Power




Termignoni full system, Ducati Performance ECU






Pistal high compression pistons, K&N air filter
