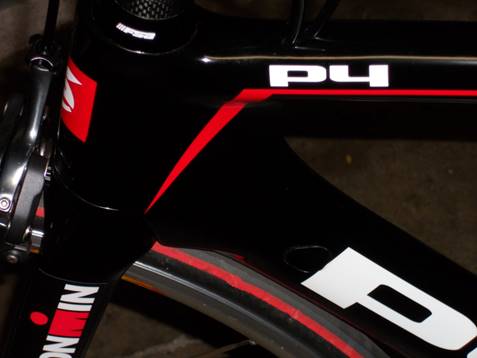

Sherwick’s racing bicycle – 2010 Cervélo
P4 (www.cervelo.com)
Weight
|
Race – 17.0 lbs complete |
|
Train – 17.5 lbs complete |
Frame
|
Material – Cervélo Smartwall™ TrueAero tube shapes, internal cable stops ICS3, integrated brake technology IBT, integrated hydration, dropped downtube, integrated seatpost clamp; strips of High and Ultra-high modulus carbon stiffen the sides of the main tubes to resist lateral bending, Kevlar added to the headtube/downtube area for industry-leading impact strength |
|
Geometry - 650C, size 48 (461mm stack, 716mm standover height), 72.0/78 head/seat angle, 110mm 1-1/8" head tube w/ integrated headset, 490mm top tube, 43mm BB drop (68mm English thread BB), 568mm front center, 368mm rear center, 389mm reach |
Fork
|
Material – FK25 carbon |
|
Geometry - 1-1/8” carbon steerer |
Controls
|
Seat post – Cervélo
Aero carbon |
|
Handlebars - Easton Attack TT 42mm
c-to-c carbon integrated bars, 3T ARX Team 96° 100mm stem |
|
Brake Levers – Vision Tech aero brake
levers |
|
Pedals - Speedplay
X/1 titanium |
Components
|
Gruppo - Shimano
7900 Dura-Ace 10-speed |
|
Crankset – Shimano
7900 170mm, 53/39 |
|
Cassette – Shimano 7900 11-25 race, 11-25
train |
|
Chain – Yumeya
7900 TiN 10-speed (52 inches, 52 links) |
Wheels
|
Race - HED H3 650C tubular rims, Vittoria
Corsa Evo CX 21mm tubular
tires (5.0 lbs for both wheels including tires, cassette, skewers) |
|
Train - Mavic Ksyrium Elite clincher rims, 18/20 spokes, Hutchinson 23mm
clincher tires (5.5 lbs for both wheels including tires, cassette, skewers) |

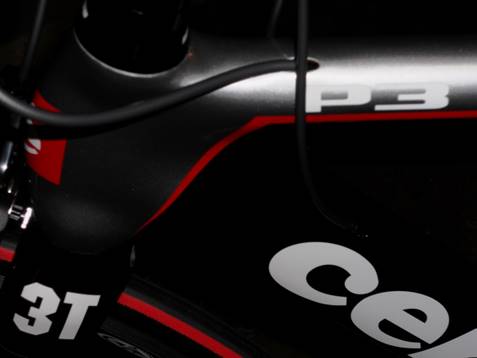

Jami’s racing bicycle – 2010 Cervélo
P3 (www.cervelo.com)
Weight
|
Race – 17.0 lbs complete |
|
Train – 18.0 lbs complete |
Frame
|
Material – Cervélo Smartwall™ TrueAero tube shapes, internal cable stops ICS3; strips of High and Ultra-high modulus carbon stiffen the sides of the main tubes to resist lateral bending, Kevlar added to the headtube/downtube area for industry-leading impact strength |
|
Geometry - 650C, size 48 (461mm stack, 716mm standover height), 72.0/78 head/seat angle, 110mm 1-1/8" head tube w/ integrated headset, 490mm top tube, 43mm BB drop (68mm English thread BB), 568mm front center, 368mm rear center, 389mm reach |
Fork
|
Material – 3T Funda
Pro carbon |
|
Geometry - 1-1/8” carbon steerer |
Controls
|
Seat post – Cervélo
Aero carbon |
|
Handlebars - Xentis
Aero Base X1 IBL 39mm c-to-c /Aero Action X1 BES medium integrated carbon, 3T
ARX Team 96° 90mm stem |
|
Brake Levers – Xentis
carbon integrated brake levers |
|
Pedals - Speedplay
X/2 stainless steel |
Components
|
Gruppo - Shimano
7900 Dura-Ace 10-speed |
|
Crankset – Shimano
7900 170mm, 53/39 |
|
Cassette – Shimano 7900 11-25 race, 12-25
train |
|
Chain – Wipperman
Connex 10S0 stainless steel (52 inches, 52 links) |
Wheels
|
Race - HED H3 650C tubular rims, Vittoria
Corsa Evo CX 21mm tubular
tires (5.0 lbs for both wheels including tires, cassette, skewers) |
|
Train – Easton Vista clincher rims, 20/24 spokes, Hutchinson
23mm clincher tires (6.0 lbs for both wheels including tires, cassette,
skewers) |
|
|
